HJ12系列光电对边控制器-HJ12 Series Photoelectric Edge-Tracking Controller
一、用途
HJ12C-22型光电对边器，由HJ12C-22型控制器和TTC-1D8 型槽型传感器组成。主要用于织物、纸张、片材等在卷绕 运行过程中边缘进行控制，使成卷后的产品端面平整。
二、结构特性和主要技术规格
1.纠边控制范围：1-8mm可调
2.超低阻抗输出技术可确保大电流输出，性能稳定可靠

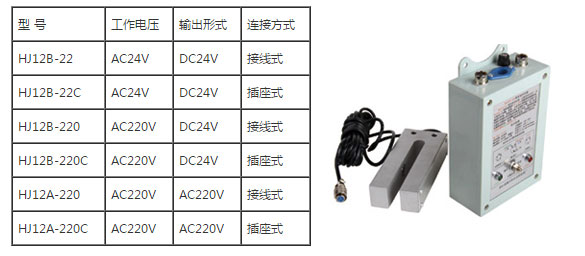

3.各型号的工作电源、输出及连接方式见下表
4.外形尺寸（宽*高*厚）：160*110*65mm/135*60*30
HJ12 Series Photoelectric Edge-Tracking Controller
1、Application
HJ12C-22 Series Photoelectric Edge-Detector: it is consisted by HJ12C-22 controller and TTC-1D8”U” style photoelectric sensor. It is mainly used in textile, papermaking, sheet-material industries for controlling the edge when rolling in order to get a smooth double faces.
2、Structure features and Main technical specifications.
--The Range of Edge-Controlling：1-8mm ( Adjustable)
--Super low impedance-output resistance to ensure high current output——stable and reliable

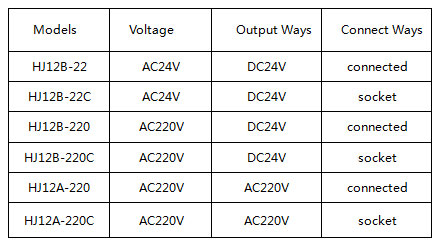

--Working power output and connects style of all kinds of models.
--Dimension (W*H*D): 160*110*65mm/135*60*30mm
