JSK300/JSK200(A、B)光电编码器-JSK300/JSK200（A、B）Photoelectric Encoder with wheel
一、用途
用于测长或测速上作传感器，可与测长或测速仪表配合 使用，也可与PLC触摸屏配合使用
二、结构特性和主要技术规格
1.内部采用光电传感器双路脉冲输出，具有寿命长响应 快等特点
2.型号规格及输出特性见更多介绍
3.外型尺寸（长*宽*高）110*110*65、110*95*95mm
| 规格型号 | 工作电源 | 每圈脉冲数量 | 输出极性 |
| JSK200 | DC5V | 4个二路 | PNP |
| JSK200B | DC5V | 20个二路 | PNP |
| JSK300 | DC5V | 3个二路 | NPN |
| JSK300B | DC5V | 30个二路 | NPN |
3.外型尺寸（长*宽*高）110*110*65、110*95*95mm

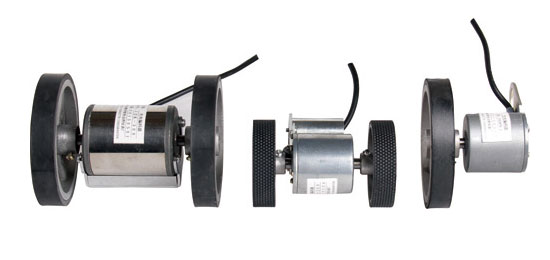

JSK300/JSK200（A、B）Photoelectric Encoder with wheel
1、Application
It is used for measuring length and speed. It can work together with length measurement device and PLC Touch screen.
2、Structure features and Main technical specifications.
a.Adopting photoelectric sensor double pulse output, It obtains the characters with long-life, fast response and so on.

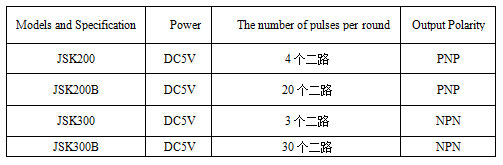

b.Models and Specifications and Output characteristic.
c. Dimension (L*W*H): 110*110*65,110*95*95mm
